Description
FEATURES
- The 0986AH0615 model is the replacement for the 0332204202
- Change Over Mini Relay, 24V, 20/10A, 5 Pins
- Long service life- made possible through meticulous processing and the use of high-quality materials allowing up to 100,000 switching cycles
- Designed to withstand temperatures ranging from -40~ +100 °C
DESCRIPTION

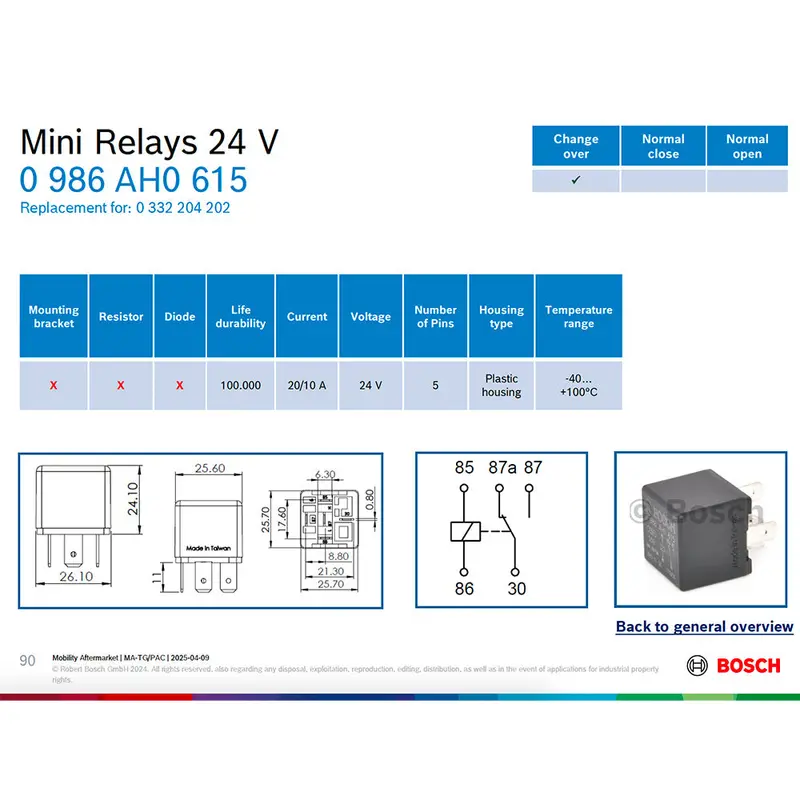

BOSCH 0986AH0615 Change Over Mini Relay, 24V, 20/10A, 5 Pins
SPECIFICATIONS
| Type | Change Over |
| Mounting Bracket | N/A |
| Resistor | N/A |
| Diode | N/A |
| Life durability | 100.000 |
| Current | 20/10 Amps |
| Voltage | 24 V |
| Number of Pins | 5 |
| Housing | Plastic Housing |
| Temp Range | -40 ~ +100 °C |
OE NUMBER
MERCEDES: 0005455405, 0005458405, 0015310260, A0005455405, A0015310260, A0005458405
VOLVO: 1504951
