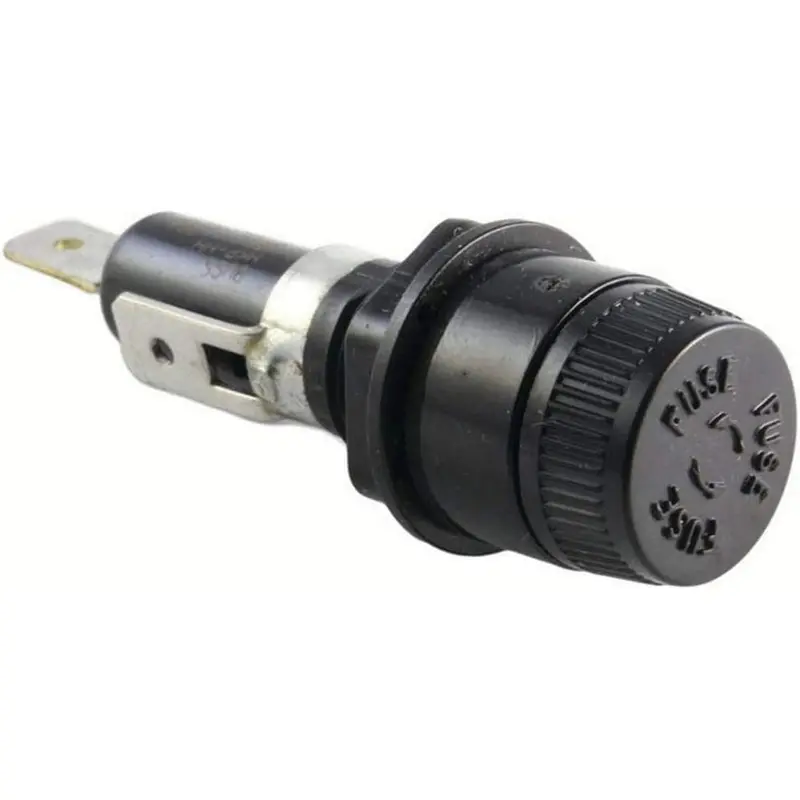

The Bussmann BP/HKP-HH-RP is a panel-mount fuse holder designed for 1/4″ x 1-1/4″ (6.3 mm x 32 mm) glass tube fuses, commonly used in automotive and marine applications. It features a bayonet-type knob and quick-connect terminals for easy installation
SPECIFICATIONS
- Amperage Rating: 15 A maximum (some sources indicate up to 30 A max in industrial applications, but the retail packaged BP version is typically 15 A).
- Voltage Rating: 250 VAC.
- Fuse Compatibility: Designed for 1/4″ diameter x 1-1/4″ length glass or ceramic fuses (AGC, AGA, AGW, AGX, SFE types).
- Mounting Type: Panel mount, for panels up to 5/16″ thick.
- Terminal Type: 1/4″ Quick-connect terminals (tin-plated brass).
- Knob Type: Bayonet-type knob (high-profile cover included for extra protection).
- Material: Thermoset body and cap, with a thermoplastic nut.
- Certifications: cURus Recognized, CE certified.
- Features: Vibration-resistant and corrosion-resistant design.
