Description

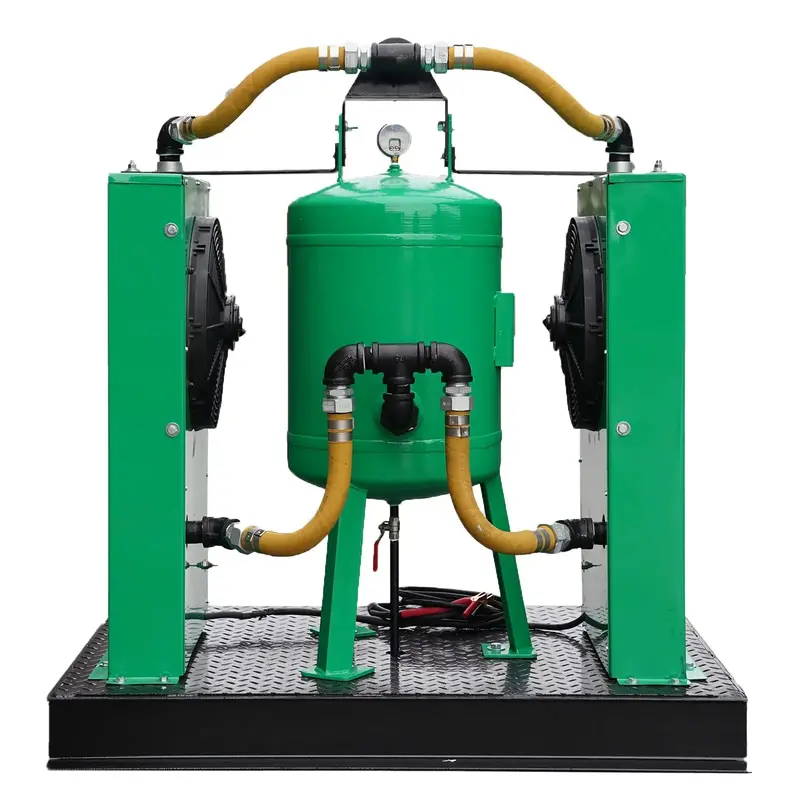

Dual-Fan Aftercooler | 500 SCFM with Moisture Trap

Provides a cool, clean, and dry air supply up to 500 SCFM at 150 PSI.

This efficient, skid-mounted Dual-Fan Aftercooler uses a two-stage system—cyclone separation and residual filtration—to remove moisture and oil from discharged air. The result: cool, clean, and dry air that improves blasting performance and finish quality.

Powered by any 12V source (min. 6 amps), it’s easy to transport and built for job site versatility. Factory support included. For best results, use with two 25′ air hoses (1 1/4″ ID).

Features

• Cools, cleans, and dries air up to 500 SCFM at 150 PSI
• Air is cooled within 4° of ambient temp
• Air is oil and moisture free
• Skid-mounted for easy transportation
• Can be powered by any 12V, minimum 6 amp power source

Specifications

• Dimensions: 48″ L x 34″ W x 51″ H
• Weight: 446 lb
• Fan Power Consumption: 12V and 6 amps/hour (each)
• 500 SCFM Capable Filter and Water Trap
• Moisture Separator
• 1 1/4″ Air Inlet and Discharge
• 0–300 PSI gauge
• 1 1/4” Shut off valve
• 1/4” Moisture Drain
• 10’ Battery Cables
• Does not include compressor air hose. Purchase here.

Run more efficiently! The ADCS Twin Blast Adapter allows you to connect two tools to your air dryer & cooler simultaneously.
